[Common Features]

• Excellent noise immunity and minimal influence from ambient light
• Power/output reverse polarity protection circuits and output overcurrent (short-circuit) protection circuits
• Mutual interference prevention function (except through-beam type)
• Sensitivity adjuster
• Switch between Light ON and Dark ON modes using control wire

[Front Sensing Type: BRQT, BRQM, BRQP Series]

• Various housing material: stainless steel (SUS316L), metal (nickel-plated brass), plastic
• Long sensing distance: 30 m (through-beam type)
• Various body sizes:
  - BRQT, BRQM : Standard
  - BRQP : Standard, Short body
• Protection structure:
  - BRQT : IP67 (IEC standard), IP69K (DIN standard)
  - BRQM, BRQP: IP67 (IEC standard)

[Side Sensing Type: BRQPS]

• Protection structure: IP67 (IEC standard)

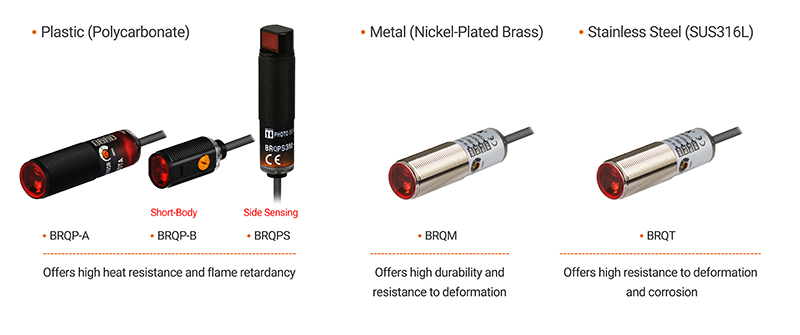

Various Models Available for Application in Diverse Environments

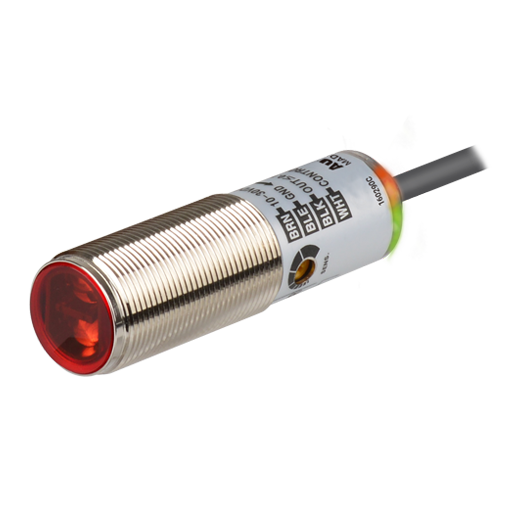

The BRQ series Ø18 mm cylindrical photoelectric sensors are available in various sensing sides (front, side), housing material (SUS316L stainless steel, nickel-plated brass metal, plastic), and body sizes (standard, short-body) for flexible application in diverse environments.

•

  Zoom-In

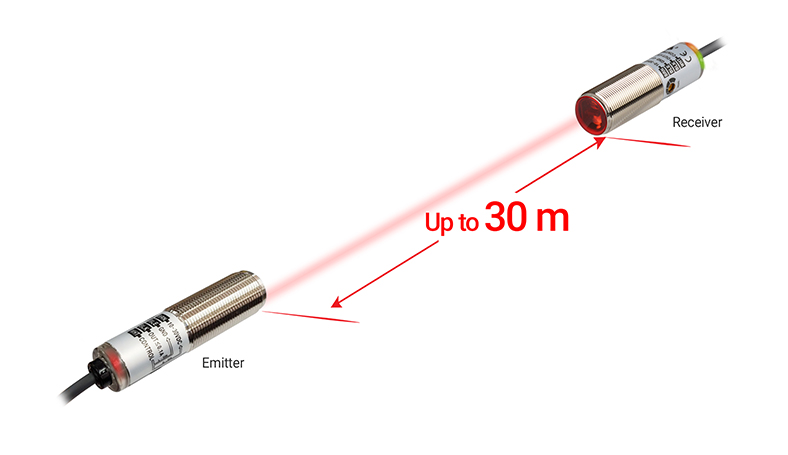

Long Sensing Distance Up to 30 m

The through-beam type models feature long sensing distances up to 30 m.

Sensing distance: through-beam type 5 m, 20 m, 30 m / Retroreflective type 3 m / Diffuse reflective type 100 mm, 400 mm, 1 m

•

  Zoom-In

Mutual Interference Prevention Function

Mutual interference prevention function changes the emitting cycle of the sensors, which allows multiple sensors to be installed close to each other. (Except through-beam type)

The built-in sensitivity adjuster allows users to easily adjust the sensitivity without repositioning the sensors.

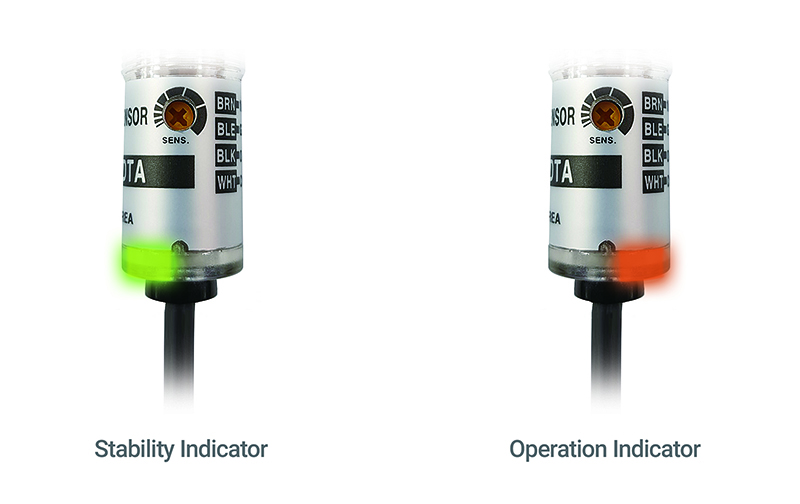

Users can easily check operation status with stability indicators (green LED) and operation indicators (red LED)

•

  Zoom-In

IP67 (IEC Standard), IP69K (DIN Standard) Protection Structure

IP67 protection structure allows stable and error-free operation even in wet or dusty environments. The IP67K models are also available for application in high pressure and high temperature water and dust environments.

BRQT models feature both IP67 and IP69K protection
